AVB-630PGM Planer Blade Sharpening Machine
Blade sharpening length: 630 mm
Our AVB-630PGM planer sharpening machine is designed for sharpening cutting edges at various angles in the wood, metal, and paper industries. Our machines utilize a high-performance and long-lasting linear guide and carriage system. The blade clamping table is adjustable to cutting angles between 0-90 degrees, and with the multi-blade clamping attachment, it’s possible to sharpen up to 5 planer blades at once. Furthermore, it features 11 different speed settings, reaching speeds of up to 11 meters per minute, and is supported by water cooling during operation. Production can be done to the desired length and according to customer requirements.
AVB-630PGM Automatic Planer Blade Sharpening Machine
with CNC Linear Slide System
The AVB-630PGM sharpening machine is designed for sharpening knives up to 600 mm in length. With the multi-blade clamping attachment, it’s possible to sharpen up to four knives at once.
General Features
• Automatic planer blade sharpening up to 60 cm,
• Mechanical blade clamping device,
• Ability to attach a maximum of 5 blades to the same device
• Microprocessor control

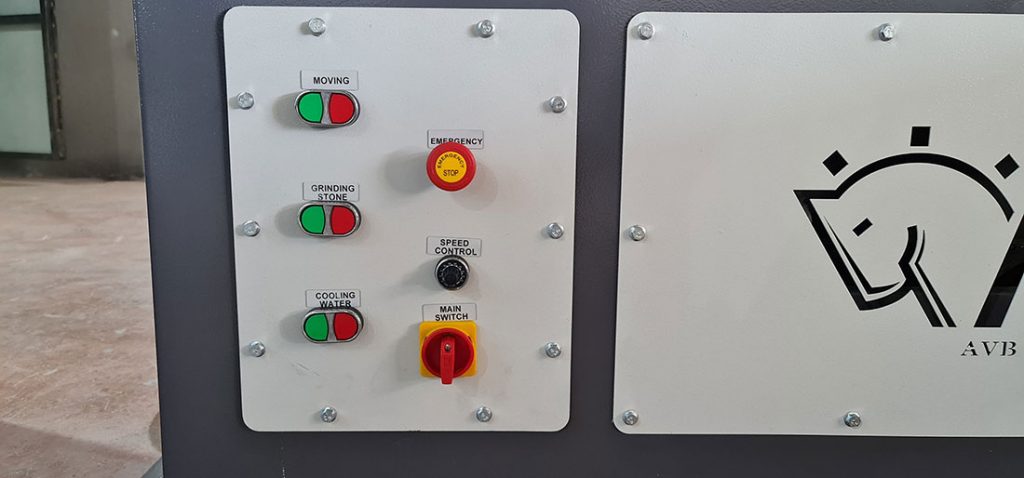

• 24 V control panel
• Speed control between 0-11 m/min
• Sharpening head moving on linear guides
• CNC linear guide system for longer machine life and excellent sharpening surface
• 0.02 mm chip removal accuracy
• Robust machine body
• Manufactured in accordance with CE standards
Technical Specifications
• Sharpening length 600 mm
• Table dimensions 60*80*600 mm
Sharpening stone diameter Ø100/150 mm
• Number of motors 3
• Sharpening speed 0-11 m/min
• Automatic chip removal 0.02 mm
• Operating voltage 380V 50-60 Hz, 3 phase
• Cooling tank capacity 30 liters
• Net-Gross weight 430/450 kg
• Dimensions 60*160*140 cm
Machine Motors
• Sharpening Stone Motor 1.1 KW-2800 RPM – Sharpening Stone: D: Ø100/150 mm
• Cooling Motor 0.09 KW-2800 RPM – Sharpening Stone: D: Ø20 mm
• Sharpening Head Left-Right Movement 0.37 KW-2800 RPM – Sharpening Stone: H: 60/80 mm
